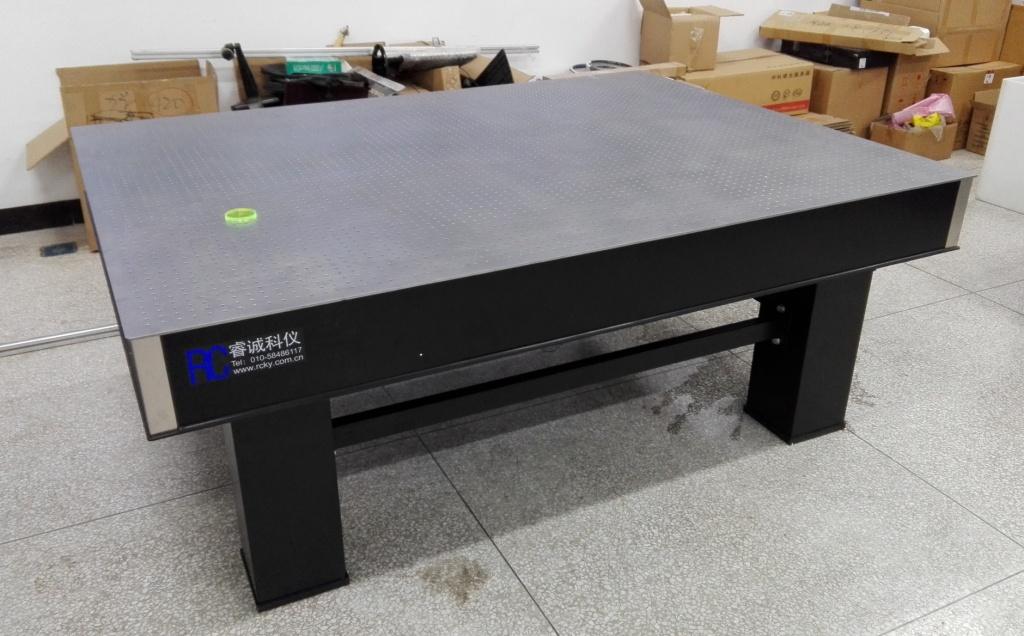

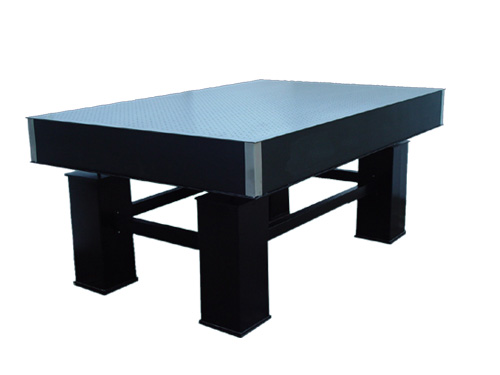

重型光學平臺：RC02BD系列
1.重型光學隔振平臺，外框采用剛性強、變形
小、優質中碳鋼板，精磨臺面，平面度高。
2.隔振層利用固有頻率低、阻振性能強的蜂窩
結構材料
3.支架采用固體阻尼隔振，調節支撐部分采用耐
磨絲桿和平面推力球軸承，調整水平更加輕松
自如。
4.平面度：< 0.08mm/m2
表面粗糙度：0.8μm～1.6μm
固有頻率：3Hz～6Hz
振幅：3μm
尺寸介紹：
| 產品型號 | 長-寬-高 | 備 注 |
| RC02BD600x600x100 | 600-600-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD750x750x100 | 750-750-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD900x600x100 | 900-600-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD1200x900x100 | 1200-900-800 | 4支撐 M6螺孔孔距25mm |
| RC02BDD1500x1000x100 | 1500-1000-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD1800x1200x200 | 1800-1200-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD2000x1000x200 | 2000-1000-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD2000x1200x200 | 2000-1200-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD2000x1500x200 | 2000-1500-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD2400x1200x300 | 2400-1200-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD2400x1500x300 | 2400-1500-800 | 4支撐 M6螺孔孔距25mm |
| RC02BD3000x1000x300 | 3000-1000-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD3000x1200x300 | 3000-1200-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD3000x1500x300 | 3000-1500-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD3500x1200x300 | 3500-1200-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD3500x1500x300 | 3500-1500-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD4000x1500x300 | 4000-1500-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD4500x1500x300 | 4500-1500-800 | 6支撐 M6螺孔孔距25mm |
| RC02BD5000x1500x300 | 5000-1500-800 | 8支撐 M6螺孔孔距25mm |
| RC02BD6000x1500x300 | 6000-1500-800 | 8支撐 M6螺孔孔距25mm |
| RC02BD8000x1500x300 | 8000-1500-800 | 8支撐 M6螺孔孔距25mm |
